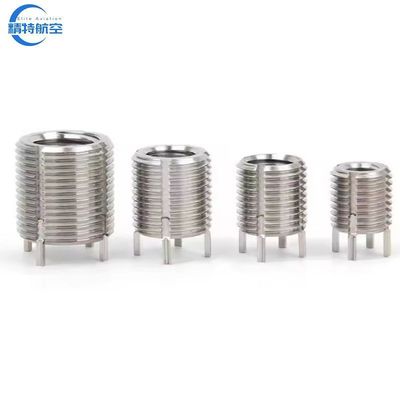

KEENSERT stainless steel 304 key locking thread insert thread repairing
Premium Material: Stainless Steel 304
Secure Packaging: Plastic Bag + Carton Case
Innovative Design: Keylocking Thread Inserts are robust and feature internal and external threading with keys attached at the top.
Reliable Installation: Once the insert is screwed into the parent material, the locking keys are driven down into the tapped threads, creating a strong mechanical lock to prevent rotation due to vibration or torsion.
Metric Type - Heavy Duty Series
| No. | Specification Data | Installation | |||||||
Type | Stainless Steel | Carbon Steel | 6H | 6g | Length | Key No. | Tap Drill | Thread tap | |
| Internal thread | External thread | Drill bit | Tap depth | Thread tap | |||||
| Heavy duty | SUS- ***-M8 | C.S- ***-M8 | ****0.7 | M8*1.25 | 8 | 2 | 6.9 | 9.5 | M8*1.25 |
| SUS- M5-M10 | C.S- M5-M10 | M5*0.8 | M10*1.25 | 10 | 2 | 8.7 | 12.5 | M10*1.25 | |
| SUS- M6-M12 | C.S- M6-M12 | M6*1.0 | M12*1.25 | 12 | 2 | 10.7 | 14.5 | M12*1.25 | |
| SUS- M8-*** | C.S- M8-*** | M8*1.25 | ****1.5 | 14 | 4 | 12.7 | 16.5 | ****1.5 | |
| SUS- M10-*** | C.S- M10-*** | M10*1.5 | ****1.5 | 16 | 4 | 14.7 | 18.5 | ****1.5 | |
| SUS- M12-M18 | C.S- M12-M18 | M12*1.75 | M18*1.5 | 18 | 4 | 16.7 | 20.5 | M18*1.5 | |
| SUS- ***-M20 | C.S- ***-M20 | ****2.0 | M20*1.5 | 20 | 4 | 18.7 | 22.5 | M20*1.5 | |
| SUS- ***-M22 | C.S- ***-M22 | ****2.0 | M22*1.5 | 22 | 4 | 20.5 | 24.5 | M22*1.5 | |
| SUS- M18-M24 | C.S- M18-M24 | M18*1.5 | M24*1.5 | 24 | 4 | 22.5 | 26.5 | M24*1.5 | |
| SUS- M20-M30 | C.S- M20-M30 | M20*2.5 | M30*2.0 | 30 | 4 | 28 | 34.5 | M30*2.0 | |
| SUS- M22-M32 | C.S- M22-M32 | M22*1.5 | M32*2.0 | 32 | 4 | 30 | 36.5 | M32*2.0 | |
| SUS- M24-M33 | C.S- M24-M33 | M24*3.0 | M33*2.0 | 33 | 4 | 31 | 37.5 | M33*2.0 | |
| SUS- M30-M40 | C.S- M30-M40 | M30*3.5 | M40*3.0 | 40 | 4 | 37 | 44.8 | M40*3.0 | |
Q1: Are you a trading company or manufacturer?
A1: We are a factory.
Q2: Do you provide samples? Are they free?
A2: We offer free samples; however, clients must cover the freight costs.
Q3: What are your payment terms?
A3: For payments < 3000USD, full payment in advance. For payments > 3000USD, 30% T/T in advance; the remaining 70% after inspection and before shipment.
Q4: What is your after-sales service?
A4: Elite Aviation offers a one-year guarantee on all products. During this period, any quality issues will be addressed with free replacement services.
Elite Aviation Manufacturing Co., Ltd is a professional supplier of thread inserts filter elements and metal products. Since its establishment, ELITE has always adhered to the production and business philosophy of "quality first, customer first", and is committed to providing cost-effective fastener products and fastening system solutions for various industries.
Now, our main products include thread inserts and filters two series. Thread inserts are tangless thread inserts, wire inserts with tails, self tapping inserts, keylocking inserts and their supporting tools. Filters are sintered mesh filter element, corrugated filter element, wire-wound filter element, bag filters, etc. Products are widely used in fields such as communication electronics, aviation, aerospace, rail transit, ships, medical treatment, industrial equipment. Through the continuous efforts of ELITE AVIATION people, products have been widely used in industries such as aviation, aerospace, high-speed rail, large locomotives, automotive manufacturing, power, machinery, as well as high-voltage switchgear, etc.
ELITE AVIATION, to create a global brand of Chinese wire thread inserts and filter elements.
|
|
