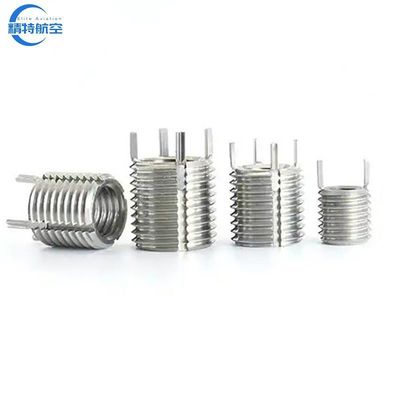

KEENSERT stainless steel 304 heavy duty key locking thread insert by DHL
Premium Material: Stainless Steel 304
Secure Packaging: Plastic Bag + Carton Case
Innovative Design: Keylocking Thread Inserts are robust and feature internal and external threading with keys attached at the top.
Reliable Installation: Once the insert is screwed into the parent material, the locking keys are driven down into the tapped threads, creating a strong mechanical lock to prevent rotation due to vibration or torsion.
Metric type DATA,Heavy duty series
| No. | Specification Data | Installation | |||||||
Type | Stainless steel | Carbon steel | 6H | 6g | Length | Key No. | Tap Drill | Thread tap | |
| Internal thread | External thread | Drill bit | Tap depth | Thread tap | |||||
| Heavy duty | SUS- M4-M8 | C.S- M4-M8 | M4*0.7 | M8*1.25 | 8 | 2 | 6.9 | 9.5 | M8*1.25 |
| SUS- M5-M10 | C.S- M5-M10 | M5*0.8 | M10*1.25 | 10 | 2 | 8.7 | 12.5 | M10*1.25 | |
| SUS- M6-M12 | C.S- M6-M12 | M6*1.0 | M12*1.25 | 12 | 2 | 10.7 | 14.5 | M12*1.25 | |
| SUS- M8-M14 | C.S- M8-M14 | M8*1.25 | M14*1.5 | 14 | 4 | 12.7 | 16.5 | M14*1.5 | |
| SUS- M10-M16 | C.S- M10-M16 | M10*1.5 | M16*1.5 | 16 | 4 | 14.7 | 18.5 | M16*1.5 | |
| SUS- M12-M18 | C.S- M12-M18 | M12*1.75 | M18*1.5 | 18 | 4 | 16.7 | 20.5 | M18*1.5 | |
| SUS- M14-M20 | C.S- M14-M20 | M14*2.0 | M20*1.5 | 20 | 4 | 18.7 | 22.5 | M20*1.5 | |
| SUS- M16-M22 | C.S- M16-M22 | M16*2.0 | M22*1.5 | 22 | 4 | 20.5 | 24.5 | M22*1.5 | |
| SUS- M18-M24 | C.S- M18-M24 | M18*1.5 | M24*1.5 | 24 | 4 | 22.5 | 26.5 | M24*1.5 | |
| SUS- M20-M30 | C.S- M20-M30 | M20*2.5 | M30*2.0 | 30 | 4 | 28 | 34.5 | M30*2.0 | |
| SUS- M22-M32 | C.S- M22-M32 | M22*1.5 | M32*2.0 | 32 | 4 | 30 | 36.5 | M32*2.0 | |
| SUS- M24-M33 | C.S- M24-M33 | M24*3.0 | M33*2.0 | 33 | 4 | 31 | 37.5 | M33*2.0 | |
| SUS- M30-M40 | C.S- M30-M40 | M30*3.5 | M40*3.0 | 40 | 4 | 37 | 44.8 | M40*3.0 | |
Q1: Are you a trading company or manufacturer?
A1: We are a factory.
Q2: Do you provide samples? Are they free?
A2: We offer free samples; however, clients must cover the freight costs.
Q3: What are your payment terms?
A3: For payments < 3000USD, full payment in advance. For payments > 3000USD, 30% T/T in advance; the remaining 70% after inspection and before shipment.
Q4: What is your after-sales service?
A4: We Elite Aviation offers a one-year guarantee on all products. During this period, any quality issues will be addressed with free replacement services.
|
|
