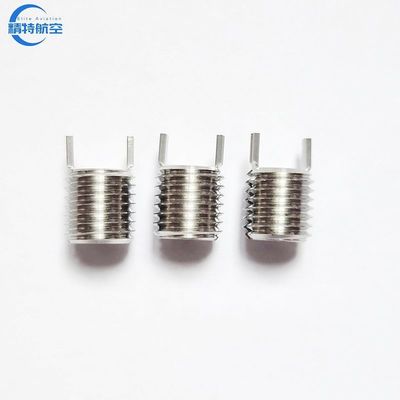

Stainless Steel 303 Self Cutting Key Locking Threaded Inserts M8
Premium Material: Stainless Steel 303
Secure Packaging: Plastic Bag + Carton Case
Innovative Design: Keylocking Thread Inserts are robust and feature internal and external threading with keys attached at the top.
Reliable Installation: Once the insert is screwed into the parent material, the locking keys are driven down into the tapped threads, creating a strong mechanical lock to prevent rotation due to vibration or torsion.
Metric type DATA,Heavy duty series
| No. | Specification Data | Installation | |||||||
Type | Stainless steel | Carbon steel | 6H | 6g | Length | Key No. | Tap Drill | Thread tap | |
| Internal thread | External thread | Drill bit | Tap depth | Thread tap | |||||
| Heavy duty | SUS- M4-M8 | C.S- M4-M8 | M4*0.7 | M8*1.25 | 8 | 2 | 6.9 | 9.5 | M8*1.25 |
| SUS- M5-M10 | C.S- M5-M10 | M5*0.8 | M10*1.25 | 10 | 2 | 8.7 | 12.5 | M10*1.25 | |
| SUS- M6-M12 | C.S- M6-M12 | M6*1.0 | M12*1.25 | 12 | 2 | 10.7 | 14.5 | M12*1.25 | |
| SUS- M8-M14 | C.S- M8-M14 | M8*1.25 | M14*1.5 | 14 | 4 | 12.7 | 16.5 | M14*1.5 | |
| SUS- M10-M16 | C.S- M10-M16 | M10*1.5 | M16*1.5 | 16 | 4 | 14.7 | 18.5 | M16*1.5 | |
| SUS- M12-M18 | C.S- M12-M18 | M12*1.75 | M18*1.5 | 18 | 4 | 16.7 | 20.5 | M18*1.5 | |
| SUS- M14-M20 | C.S- M14-M20 | M14*2.0 | M20*1.5 | 20 | 4 | 18.7 | 22.5 | M20*1.5 | |
| SUS- M16-M22 | C.S- M16-M22 | M16*2.0 | M22*1.5 | 22 | 4 | 20.5 | 24.5 | M22*1.5 | |
| SUS- M18-M24 | C.S- M18-M24 | M18*1.5 | M24*1.5 | 24 | 4 | 22.5 | 26.5 | M24*1.5 | |
| SUS- M20-M30 | C.S- M20-M30 | M20*2.5 | M30*2.0 | 30 | 4 | 28 | 34.5 | M30*2.0 | |
| SUS- M22-M32 | C.S- M22-M32 | M22*1.5 | M32*2.0 | 32 | 4 | 30 | 36.5 | M32*2.0 | |
| SUS- M24-M33 | C.S- M24-M33 | M24*3.0 | M33*2.0 | 33 | 4 | 31 | 37.5 | M33*2.0 | |
| SUS- M30-M40 | C.S- M30-M40 | M30*3.5 | M40*3.0 | 40 | 4 | 37 | 44.8 | M40*3.0 | |
Q1: Are you trading company or manufacturer?
A1: We are factory loacted in Xinxiang City,Henan Province of China.
Q2: What products do you offer?
A2: Our main products are water filter,hydraulic oil filter, vacuum pump filters, filter cartridge, air compressor filter elements as well as accessories.
Q3: Do you provide samples? Is it free?
A3: Free samples can be supplied and the freight is paid by clients. This charge will be subtracted in your future order.
Q4: What is your payment terms?
A4: Payment<3000USD,100% payment in advance.
Payment>3000USD,30%T/T in advance,the balance 70% paid after inspection and before shipment.
Q5: What's your after sales service?
A5: Elite Aviation's goods have one year guarantee time and during this time if there is any quality questions, free replacement service is supplied.
Q6:How do you ship the goods?
A6:According to your order quantity, it is usually by sea,air or express etc.
Elite Aviation Manufacturing Co., Ltd is a professional supplier of thread inserts filter elements and metal products. Since its establishment, ELITE has always adhered to the production and business philosophy of "quality first, customer first", and is committed to providing cost-effective fastener products and fastening system solutions for various industries.
Now, our main products include thread inserts and filters two series. Thread inserts are tangless thread inserts, wire inserts with tails, self tapping inserts, keylocking inserts and their supporting tools. Filters are sintered mesh filter element, corrugated filter element, wire-wound filter element, bag filters, etc. Products are widely used in fields such as communication electronics, aviation, aerospace, rail transit, ships, medical treatment, industrial equipment. Through the continuous efforts of ELITE AVIATION people, products have been widely used in industries such as aviation, aerospace, high-speed rail, large locomotives, automotive manufacturing, power, machinery, as well as high-voltage switchgear, etc.
ELITE AVIATION, to create a global brand of Chinese wire thread inserts and filter elements.
|
|
