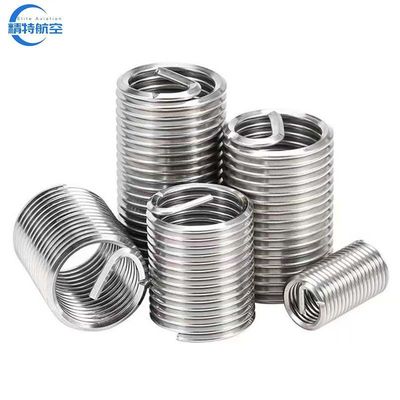

DIN8140 Wire Screw Thread Insert Fastener for Helicol Repair are superior fasteners that create strong and durable threads in hard or high-strength materials.
DIN8140 series steel wire thread insert type and size
| Screw Thread d | M2 | M2.5 | M3 | (M3.5) | M4 | M5 | M6 | (M7) | M8 | M8 | M10 | M10 | M10 | M12 | M12 | M12 | |
| P | Coarse thread pitch | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1 | 1.25 | - | 1.5 | - | - | 1.75 | - | - |
| Fine thread pitch | - | - | - | - | - | - | - | - | - | 1 | - | 1 | 1.25 | - | 1 | 1.25 | |
| L | Nominal Size (min) | 2 | 2.5 | 3 | 3.5 | 4 | 5 | 6 | 7 | 8 | 8 | 10 | 10 | 10 | 12 | 12 | 12 |
| Nominal Size (max) | 5 | 6.25 | 7.5 | 8.75 | 10 | 12.5 | 15 | 17.5 | 20 | 20 | 25 | 25 | 20 | 30 | 24 | 24 | |
| n | Number of turns (min.) | 2.9 | 3.5 | 3.9 | 3.7 | 3.7 | 4.3 | 4.2 | 5.3 | 4.7 | 6.1 | 5 | 7.6 | 6 | 5.2 | 9.3 | 7.4 |
| Number of turns (max.) | 8.9 | 10.5 | 11.1 | 11.2 | 10.9 | 12.3 | 12.3 | 14.3 | 13.5 | 16.5 | 14.2 | 20.7 | 13.1 | 14.7 | 19.5 | 15.9 | |
| d1 | Large diameter (min) | 2.6 | 3.3 | 3.8 | 4.55 | 5.15 | 6.35 | 7.6 | 8.65 | 9.85 | 9.85 | 12.1 | 12.1 | 12.1 | 14.4 | 14.4 | 14.4 |
| large diameter (max) | 2.8 | 3.5 | 4 | 4.75 | 5.35 | 6.6 | 7.85 | 8.9 | 10.1 | 10.1 | 12.5 | 12.5 | 12.5 | 14.8 | 14.8 | 14.8 | |
| core hole, Ref. | 2.1 | 2.6 | 3.2 | 3.7 | 4.2 | 5.2 | 6.3 | 7.3 | 8.4 | 8.3 | 10.5 | 10.3 | 10.4 | 12.5 | 12.3 | 12.4 | |
| Screw Thread d | M12 | (M14) | (M14) | (M14) | M16 | M16 | (M18) | (M18) | (M18) | (M18) | M20 | M20 | M20 | (M22) | (M22) | (M22) | |
| P | Coarse thread pitch | - | 2 | - | - | 2 | - | 2.5 | - | - | - | 2.5 | - | - | 2.5 | - | - |
| Fine thread pitch | 1.5 | - | 1.25 | 1.5 | - | 1.5 | - | 1.5 | 1.5 | 2 | - | 1.5 | 2 | - | 1.5 | 2 | |
| L | Nominal Size (min) | 12 | 14 | 14.4 | 14 | 16 | 16 | 18 | - | 18 | 18 | 20 | 20 | 20 | 22 | 22 | 22 |
| Nominal Size (max) | 30 | 35 | 16.4 | 35 | 40 | 40 | 45 | 12 | 45 | 45 | 40 | 40 | 40 | 44 | 33 | 44 | |
| n | Number of turns (min.) | 6.2 | 5.6 | 9.4 | 7.4 | 6.5 | 8.7 | 5.6 | - | 9.5 | 7.1 | 6.3 | 10.7 | 8 | 6.9 | 11.7 | 8.7 |
| Number of turns (max.) | 15.7 | 15.2 | 10.6 | 19.9 | 17.5 | 22.9 | 15.5 | 6 | 25.3 | 19.1 | 13.7 | 22.4 | 16.8 | 15 | 18.1 | 18.4 | |
| d1 | Large diameter (min) | 14.4 | 16.8 | 16.8 | 16.8 | 19 | 19 | 21.5 | 21.5 | 21.5 | 21.5 | 23.7 | 23.7 | 23.7 | 26.3 | 26.3 | 26.3 |
| large diameter (max) | 14.8 | 17.2 | 17.2 | 17.2 | 19.4 | 19.4 | 22 | 22 | 22 | 22 | 24.2 | 24.2 | 24.2 | 26.8 | 26.8 | 26.8 | |
| core hole, Ref. | 12.5 | 14.5 | 14.25 | 14.5 | 16.5 | 16.5 | 18.75 | 18.5 | 18.5 | 18.5 | 20.75 | 20.5 | 20.5 | 22.75 | 22.5 | 22.5 | |
| Screw Thread d | M24 | M24 | M24 | (M27) | M30 | M30 | M30 | (M33) | (M33) | M36 | M36 | M36 | (M39) | (M39) | (M39) | ||
| P | Coarse thread pitch | 3 | - | - | 3 | 3.5 | - | - | 3.5 | - | 4 | - | - | 4 | - | - | |
| Fine thread pitch | - | 1.5 | 2 | - | - | 1.5 | 2 | - | 2 | - | 2 | 3 | - | 2 | 3 | ||
| L | Nominal Size (min) | 24 | 24 | 24 | 27 | 30 | 30 | 30 | 33 | 33 | 36 | 36 | 36 | 39 | 39 | 39 | |
| Nominal Size (max) | 48 | 36 | 48 | 54 | 60 | 45 | 45 | 66 | 49.5 | 72 | 54 | 54 | 78 | 58.5 | 58.5 | ||
| n | Number of turns (min.) | 6.2 | 12.9 | 9.6 | 7.1 | 7 | 16.5 | 12.3 | 7.8 | 13.7 | 7 | 14.1 | 9.9 | 7.7 | 16.3 | 10.8 | |
| Number of turns (max.) | 14 | 19.8 | 20.2 | 15.4 | 14.9 | 25.3 | 19 | 16.5 | 21.2 | 15.2 | 21.9 | 15.3 | 16.6 | 25 | 16.8 | ||
| d1 | Large diameter (min) | 28.6 | 28.6 | 28.6 | 32.2 | 35.2 | 35.2 | 35.2 | 38.3 | 38.3 | 42.1 | 42.1 | 42.1 | 45.1 | 45.1 | 45.1 | |
| large diameter (max) | 29.1 | 29.1 | 29.1 | 32.7 | 35.7 | 35.7 | 35.7 | 38.8 | 38.8 | 42.6 | 42.6 | 42.6 | 45.6 | 45.6 | 45.6 | ||
| core hole, Ref. | 24.75 | 24.5 | 24.5 | 27.75 | 31 | 30.5 | 30.5 | 34 | 33.5 | 37 | 36.5 | 37 | 40 | 39.5 | 40 | ||
Material | Steel Grade | Usage Temperature | Collapse strength at room temperature | Surface Treatment |
| Stainless steel | 0Cr18Ni9 | 425ºC in short time 315ºC in long time | >1400Mpa | Natural surface Cadmium plating Silvering plating |
| 1Cr18Ni9 | ||||
| 1Cr18Ni9Ti | ||||
| Copper alloy | QSn6.5-4 | 300ºC in short time 250ºC in long time | >1000Mpa | Natural surface Cadmium plating |
| High-temperature alloy | Inconelx750 | 750ºC in short time 550ºC in long time | >1400Mpa | Natural surface Silvering plating |
Wire thread inserts are inserts developed to protect non-ferrous metal threaded holes and are suitable for threaded connections. Screw and tighten it into the threaded hole of one of the connected parts to form a standard internal thread, and the bolt (or screw) is then screwed into it. The commonly used material for wire thread inserts is stainless steel 304. The installation steps of wire thread inserts are simple and clear, including drilling, tapping, installation and tail removal.
Applications:Package: Usually finished products will be put into plastic bags and outer with carton cases.
We will also reinforce the cases onto tthe pallet to avoid damage during transportation.
Delivery time: Stocked goods can be delivered out the same day we received the order.
Usually the delivery time is within 3-7 working days.
